iluminação de rua automática no sistema de controle do sensor desligado

The  Street Light CCT Sensor aims at the using environment of street lighting, tunnels etc., through the abnormal changing ambient, the lighting fixtures are automatically controlled according to programming to realize intelligent lighting management. Traditional street lightings,  tunnels, factories lighting fixtures are mostly controlled by personnel inspection or regular control, which initially meets the needs of the scene, but still cannot achieve the effect of intelligent control. For example: Turn on or dimming to brighter when people is coming, and turn lights off when people go away; No matter which direction the person enters from, the lamps in the area will automatically light up or increase according to the setting; this equipment cooperates with the intelligent lamps to solve these problemsperfectly. It adopts the most advanced and popular LoRa wireless communication technology, the communication distance can reach 3 kilometers without repeater, and the actual measurement reach 1 kilometers, and the communication distance is adjustable.

According to the real time traffic flow rate conditions, it cooperates with the intelligent lighting centralized controller to automatically control the illuminance of the roadway lights according to the changing of city roads brightness, to achieve the purpose of intelligent public lighting management.

aCH -O controlador de loop h0102 é pesquisado e desenvolvido de forma independente por nossa empresa . ele controla a alimentação de luminárias por meio de uma interface homem-máquina e monitora o estado fechado do loop de alimentação circuito, que é amplamente utilizado para t ele luzes da estrada da estrada e túnel iluminação, e a iluminação da indústria, como luz led alta e luz baixa em projetos de iluminação de armazém e fábrica. o equipamento adota a tecnologia padrão de barramento industrial RS485 , a distância de comunicação pode chegar a 2 000 metros s sem re batedor e alcance de visibilidade; 7 nívels de re pedacinhos pode ser definido na cena , e a distância máxima pode ser de até 7 000 metros s de acordo com o cálculo de 1 000m éteres para cada nível de re pedreiro.

características principais: 1. ampla faixa de potência de 50W, 100W, 200W, 500W, 600W, 1500W opcional 2 . fios de energia de grau marítimo de 50 pés a 1000 pés de profundidade (300 m de profundidade) 3. design de patente de utilidade 4. chips LED VHO para eficiência 25% maior 5 . cabo de grau marinho por 5 a 10 anos trabalhando bem em água salgada (o ambiente marinho)

Key Features n Applicable to signal control systems, traffic information service systems, road traffic monitoring and other application scenarios. n High precision millimeter wave radar with 4 million low illumination camera. n Max. 8 lanes of multi-target motor vehicles detection, longitudinal distance of 100m. n High spatial resolution and strong penetration ability, support working in all-weather environment, not affected by rain, fog, strong wind, dust, light, etc. n Built-in deep learning algorithm, support intelligent recognition function, support license plate recognition and target fully structured. n Supports detection of multiple targets’ position, lane, speed, direction and other info. n It supports lane statistics, traffic flow, speed, status, queue, time distance, spacing, Qty.of parking areas, avg.delay, space occupancy and time occupancy data, and supports statistical upload from 1 to 3600 seconds. n Supports traffic evaluation data output, including congestion, queue length, etc. n Each lane supports 2 virtual coils to output vehicle entry and exit signals, the virtual coil positions are configurable. n Fog penetration, strong light suppression, wide dynamic range, and has multiple white balance modes to suit various scene requirements. n Support Network & RS-485 data upload. Parameters Millimeter Wave Radar Target Type People / Motor Vehicles / Non-Motor Vehicles Max. Qty. of Detection 128 Working Frequency 80 ~ 81GHz Transmit power 12dBm(RFout)+18dB(ANTgain) Speed Detect Range -250 km/h ~ 250 km/h Detection Mode Doppler moving target detection, slow moving target detection, fast moving target detection Sweep bandwidth 136.5 MHz Modulation Waveform FMCW Max. Detection Distance 150m@0° ;    50m@士45° Horizontal angle measurement range 士45° Horizontal lobe 90° for MRR, 22° for  LRR Vertical Lobe 13°(-6dB) Refresh rate 12.5Hz Install Height 1~ 6m   Interface Serial Port 1 of RS-485 Port Snapshot Function Image Format JPEG Image resolution 2688 × 1520 Smart Functions Intelligent recognition Bayonet capture, license plate recognition, vehicle model recognition, vehicle body color recognition, brand, sub-brand. Exterior Interface Ethernet 2pcs RJ45 100 M / 1000 M Adaptive Ethernet port  Warning 1 Relay switch Function Features Min.illumination Colorful: 0.01 Lux @ (F1.2，AGC ON) Black & White: 0.001 Lux @ (F1.2，AGC ON) shutter 1/25s ~ 1/100,000s Video compression standards H.264, H.265, MJPEG Compression output bit rate 32 Kbps ~ 16 Mbps Video resolution 2688 × 1520 Frame rate 25 fps (2688 × 1520) Image Settings Saturation, brightness, contrast, white balance, gain adjustable through software Storage function TF General functions Heartbeat, password protection, NTP time synchronization Video format PAL General Specifications Dimmensions 226 mm (W) x 375.3 mm (H) x 206.4 mm (D) Working Temperature -30 °C ~ +70 °C Working Humidity 5% ~ 95% @ 40 °C，No condensation Working Voltage DC 24 V ± 10% Power Consumption 25 W Max. N.W. 3 kg ICR Type Infrared IP Rating IP67 Focal Length 12 mm Resolution 2688 × 1520 White Balance Automatic white balance Wide dynamic range Support Max. Energy Optimization achieving by the Smart Traffic Radar  and Video all-in-one Detecting Machine

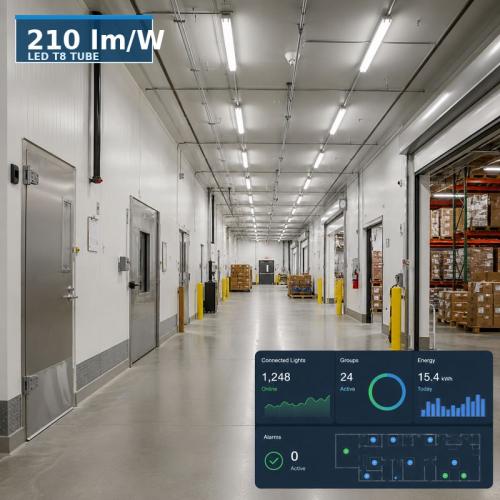

o modo de controle digital do sistema de controle de iluminação inteligente da indústria é cada vez mais popular no sistema de gerenciamento de iluminação da indústria iot, adotando a solução de última geração, escurecimento preciso do brilho da iluminação para 100% imediatamente para detectar o presença de corpos humanos, não apenas de acordo com os, sensores de detecção de intensidade da luz do dia, sensores infravermelhos, sensores de movimento para detectar esteira transportadora móvel e empilhadeira,, mas também lidar com a emergência por interface local: botões no dispositivo ou tela de toque industrial, dispositivos portáteis, e interruptores do painel de revisão para planejamento de segurança.

de acordo com o ambiente da estrada/túnel, coopera com o controlador centralizado de iluminação inteligente para controlar automaticamente a iluminância das lâmpadas de acordo com a mudança do brilho ambiental, para atingir o objetivo de gerenciamento e controle inteligentes.

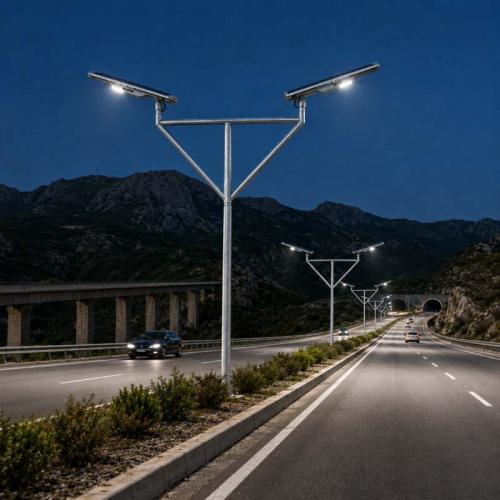

Key Features To prevent theft and vandalism, GPS positioning allows for real-time tracking of stolen street light. Hybrid AC & Solar Power or Pure Solar Power 4G Sim Card CAT 1 Communication Technology (Hybrid PLC / LoRa  /LoRaMesh) Auto-change Solar to AC by Smart Detect Sensor within 3 seconds Cloud based IoT Lighting Controlling & Monitoring Real Time Data: Watts / Voltage / Current / Power Factor can be Remote Reading Power Consumption / Faulty Reporting Using high efficiency 5050 leds,more than 200lm/w. Adopting high efficiency monocrystalline silicon solar panel, conversion rate is more than 21%. Grade A LiFePo4 battery,capacity is more than 80% after 2000 cycles. PWM and MPPT solar charger Horizontal or vertical pole installation,mounted angle is adjustable
